Dust Collector Cyclone Assembly DC38

4.8 (50 reviews)

$149.00

$189.99

Description

Cyclone dust collecting bucket

Heavy-duty 16-gallon container kit for use with cyclone separators
Built to last a lifetime with a galvanized steel construction and painted exterior
Metal drum lid features pre-cut holes for installing the cyclone
Includes reinforced steel drum, steel lid with pre-cut cyclone mounting holes, and locking-lever ring clamp
Compact footprint with simple installation
Cyclone molded from an industrial, abrasion resistant HDPE resin. Static dissipative construction safely conveys static charge build-up to the electrical ground, preventing harmful discharges.
The gross weight of the product is 26.46 lb, and the packaging dimensions are 28.3"L x 16.7"W x 16.7"H.

Cyclone separators

Upgrade your single-stage dust collector and say goodbye to clogged filters!

How the Super Dust Deputy Separator Cyclone works

Single-stage dust collectors are great for small, hobbyist shops but they come with a cost - fine dust quickly clogs the filter, reducing suction and leaving dust at your tools! Worse still, there's nothing to protect your dust collector from being damaged should you accidentally suck up large wood chunks, bolts, etc.
How do you improve your dust collector's performance while dramatically reducing the need to clean or replace its filter? Install our cyclone!
Cyclone separates over 99% of dust and debris from the incoming airstream, virtually eliminating filter clogging and suction loss, and significantly prolonging the lifespan of your filter.

Prevents both fine dust and large debris from reaching your dust collector
Prolongs the lifespan of the filter while reducing the need for cleanings
Ultra-high efficiency with integrated air ramp and neutral-vane inlet
Lightweight and compact design for fast and simple installations
Compatible with almost any dust collector (DC-50/DC-30A/DC-A)
Molded from an industrial, abrasion resistant HDPE resin
Static dissipative construction safely conveys static charge build-up to the electrical ground

Cyclone separates over 99% of dust and debris from the incoming airstream, virtually eliminating filter clogging and suction loss, while significantly prolonging the lifespan of your filter.

Cyclone molded from an industrial, abrasion resistant HDPE resin. Static dissipative construction safely conveys static charge build-up to the electrical ground, preventing harmful discharges.

3WIDE APPLICATION: This efficient dust collector can be adapted for most brands of vacuum sweeper and dust collector. It works with wood dust, drywall dust, concrete dust, metal shavings, pharmaceutical waste, water, baking flour, leaves, animal hair, and much more. Perfect for woodworking, CNC machining, workshops, machinery, textile, etc.

4SUITABLE FOR 4” HOSES: A handy dust collector, suitable for the 4” hose. Inlet and Outlet external diameter: 4.33"/110mm. White Coupling external diameter: 4”/100mm.

HIGH-QUALITY MATERIAL: Made of high-quality PP material, chemical corrosion resistance, high-temperature resistance, no deformation, clogging-free, prolong the lifespan of your filter.

We accept

Dust Collector Cyclone Assembly

Product Name	Dust Collector Cyclone Assembly DC38
Container Material	Galvanized steel structure with painted exterior
Cyclone Separator Material	Industrial-grade abrasion-resistant HDPE resin mold
Container Capacity	16 gallons
Cyclone Separator Static Dissipative Feature	Effectively channels static charge to electrical ground, preventing buildup
Dust Separation Efficiency	Separates over 99% of dust and debris, nearly eliminating filter clogs and suction loss
Compatible Hose Size	Suitable for 4-inch hoses, inlet and outlet outer diameter: 4.33 inches/110mm, white connector outer diameter: 4 inches/100mm
Applicable Dust Types	Wood dust, drywall dust, concrete dust, metal shavings, etc.
Packaging Dimensions	28.3 inches (L) x 16.7 inches (W) x 16.7 inches (H)
Gross Weight	26.46 lbs

2-removebg-preview.png__PID:e25fd049-19cb-4b5c-b570-89befdcc21c1

Dust Collector Cyclone Assembly Specifications

Durable Construction:

Galvanized Steel Container: Corrosion-resistant, long-lasting.
Cyclone Separator: Abrasion-resistant HDPE for strength.

Efficient Dust Collection:

Separates 99%+ dust, reduces clogging and suction loss.Keeps fine dust and debris out, protecting equipment.

Static Dissipation for Safety:

Safely channels static charge to ground, preventing discharges.

Dust Collector Cyclone Assembly

Secure Shopping

SSL-encrypted transactions for safe shopping

Free Shipping

Free shipping on orders over $50 within the US

Easy Returns

Hassle-free 30-day returns policy for all orders

Customer Support

24/7 expert support via phone, email, or chat

Dust Collector Cyclone Assembly

High-Quality Material

Galvanized Steel Container: Made with galvanized steel and painted exterior, offering enhanced corrosion resistance and long-term durability, ideal for industrial environments.Cyclone Separator: Molded from industrial-grade, abrasion-resistant HDPE resin, ensuring high strength and longevity.

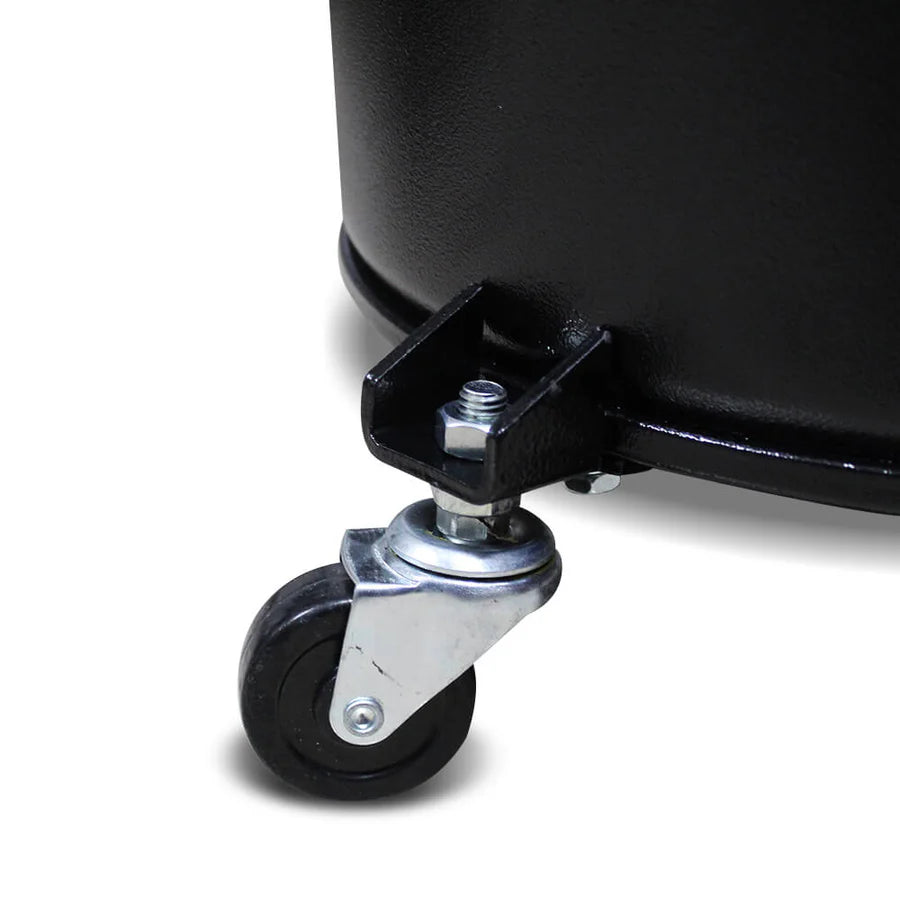

The heavy-duty, movable wheels make it easy to transport the equipment while ensuring its durability, allowing for worry-free use.

5.webp__PID:21c1be84-0dd7-49a2-8d2f-dca0e04238a6

7.webp__PID:fc65ed30-8594-429d-8b3b-d30ad4c11a2a

Efficient Dust Collection

The cyclone separator separates over 99% of dust and debris, significantly reducing filter clogging and suction loss, and extending the life of your dust collection system.Prevents fine dust and large debris from entering the dust collector, keeping equipment safe and efficient.

Dust Collector Cyclone Assembly

What Our Customers Say

Hear why thousands of our customers love CapturePro

Better than it needs to be

Added this to another setup as an intermediate separator. It sits between my miter table and my primary intake to keep chips from making it into my blade. It's been nice, probably some drop off in the airflow but nothing I'm noticing. It also had a bum part when I received it and support sent me a new part immediately. So I'm happy with it all around.

Mixed feelings

Price was what sold me on this setup. A cyclone and barrel for be cost slightly lower than just the cyclone from Onieda Dust Deputy.

Appearance and structure are nice, the cyclone and barrel seem to be well made and durable. The intake and exhaust ports for some reason were made in an odd size (metric possibly) so they supply an adapter which is appreciated, to fit 4” hose. I did have to get creative with fitting the top to a 5” intake on my dust collector motor housing.

With that said, function seems a bit mediocre. 1st, the bags can’t be used, they immediately sucked up into the cyclone and so all the chips/dust went straight through into collectors motor and out into the filter. Zero function. This is a no -care situation for me because I was unlikely to use the bags anyway, but gave it a try. My assumption is the limitation of what I assume must be the 3-D printer used to produce the cyclone itself. The center section doesn’t go down far enough, so though it does create a cyclonic effect, chips can easy be sucked into the motor housing. Removing the bag and using only barrel does allow it to work “mostly”, but unfortunately I’d say it is 80% at best as a lot of dust makes it through to the filter and some chips even end up in the secondary catch system.

In comparison, the Oneida Dust Deputy I have on another setup, it just doesn’t perform well. The Dust Deputy has 6” primary port on the exhaust side with well made adapter to 4” and 4” molded intake port, it also has a deep center section in the cyclone and it catches close to 95-100% of chips, which remain in the barrel. Nearly nothing besides the very finest dust seems to make through to the filter side and secondary catch system.

However, I can still say this is a significant improvement over a single stage system, and definitely a budget friendly approach to improving performance, efficiency in the home shop environment for most customers.

Full of holes

This would have been a decent product but my lid had holes all over it none of them lined up with cyclone and a lot of them were out away from where the cyclone mounts i had to cover them and also drill new holes for the cyclone and also the bigger hole for cyclone was smaller than the cyclone so i had to take jig saw and make it bigger

Great cyclone system for dust collectors

The cyclone does a fantastic job. The collection bin and top are high quality. Definitely recommend. The instructions are lacking see details on setup of the casters. Spend an extra 10 minutes and expand the instructions.
