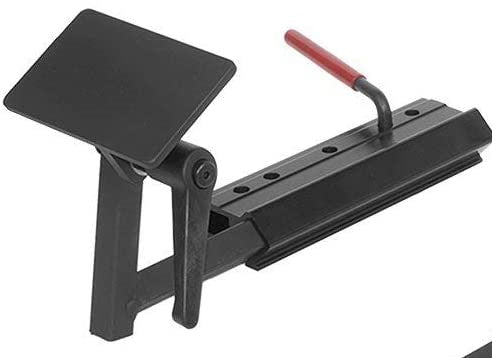

How to use TDS-200C4HL with ONE WAY Grinding Jig
TDS-200C4HL

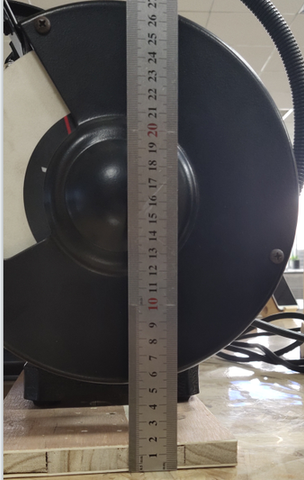

 1).Put a wood(about 1.5cm thick) under the base. Because the space is too small to put the one way.

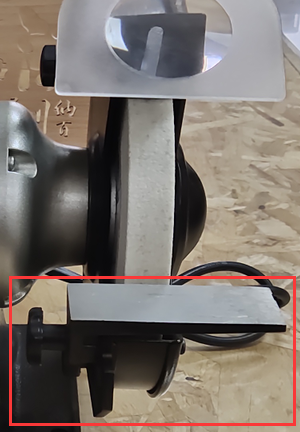

2).Turn the left screw by hand, remove the bracket carefully.

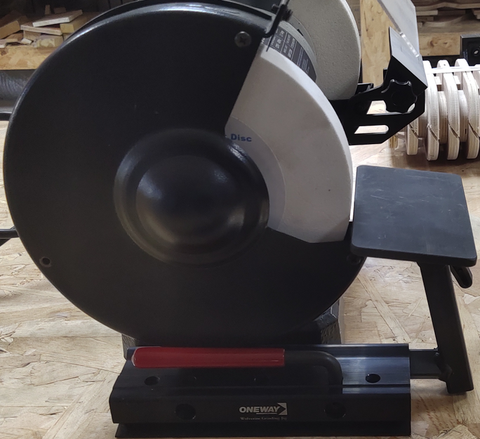

3).Put the one way under the wheel. The bracket should be close to the grinding wheel.

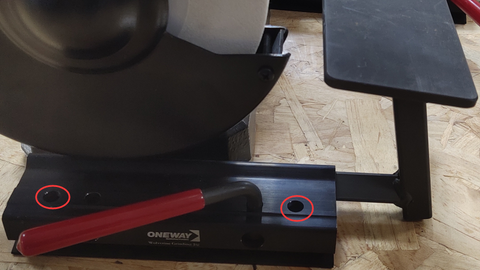

4).Choose a suitable position and fasten it with screws. Look at the red circle in the picture. Please mounting the screw in the red circle.

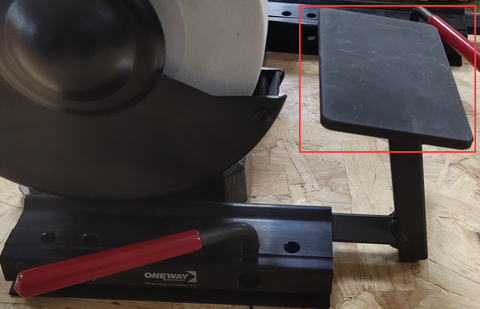

5). Move the workbench back and forth to choose the right position. Choose the angle you want. This position is convenient for work.

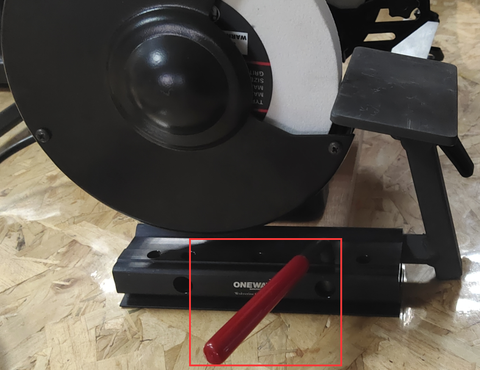

6). After choosing the suitable position, lock the red handle tightly to fix one way.
7).Choose the right Angle by constantly adjusting. Then you can choose the right angle for working.

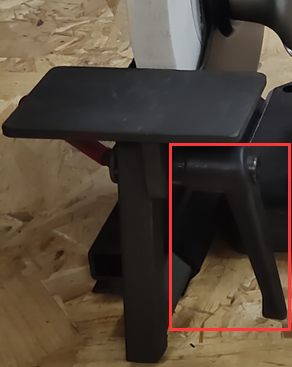

8).After choosing the right angle, lock the handle tightly. Then the one way cann’t be moved and easy to work.
